Body Structure: Impact-absorbing body and high-strength cabin

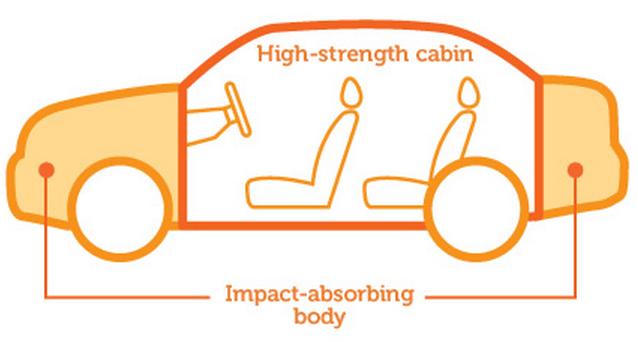

Toyota used the image below to simply explain how an impact absorbing body and a high strength cabin protects occupants. Just remember, the toughest still will be in the cabin area but can extend into the impact absorbing area too.  Never assume your cutters cannot cut any part of the vehicle, if your cutters stall, go to plan b.  Plan B can be as simple as repositioning the tool.

In order to help reduce the impact on the occupants during a collision and reduce cabin deformation, crumple zones at the front and rear of the vehicle absorb the impact with high efficiency. The cabin uses a body structure that is strong and does not deform easily. To help protect occupants during side collisions, where little crumple zone is available, a high-strength body frame, including the center pillar and the floor cross member, absorbs the impact with decreased deformation.
