2013 Chevrolet Malibu Eco; AKA a Hybrid, kind of!

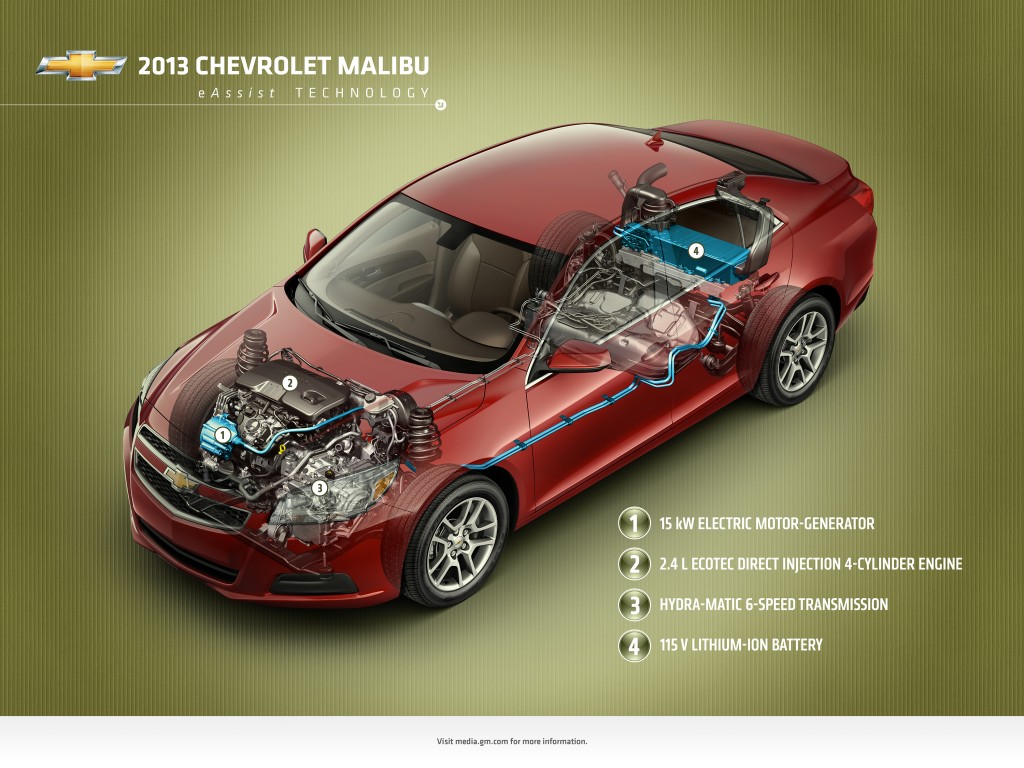

The Chevrolet Malibu Eco vehicles are front-wheel drive, five passenger vehicles with a lightly electrified gasoline engine. The eAssist system utilizes a high voltage battery, located in the trunk, as a supplemental power source. The system assists the engine utilizing a high torque belt-driven starter / generator.

2013 Malibu Eco Chevrolet eAssisst Extrication Hybrid Battery HV Cable

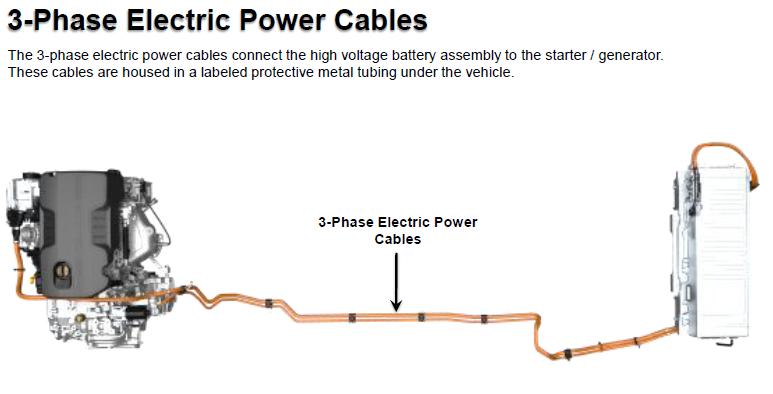

The eAssist system features a 130 volt lithium-ion battery, which provides electrical energy to the starter / generator. The high voltage battery assembly is located in the trunk behind the rear passenger seats. The assembly includes several internal components that operate together to provide and control the high voltage for the eAssist system.

 2013 Malibu Eco Chevrolet eAssisst Extrication Hybrid Battery HV Cable

There are two separate electrical systems within the eAssist vehicles: low voltage (12 V) and high voltage (130 V). The low voltage system is similar to a conventional vehicle.

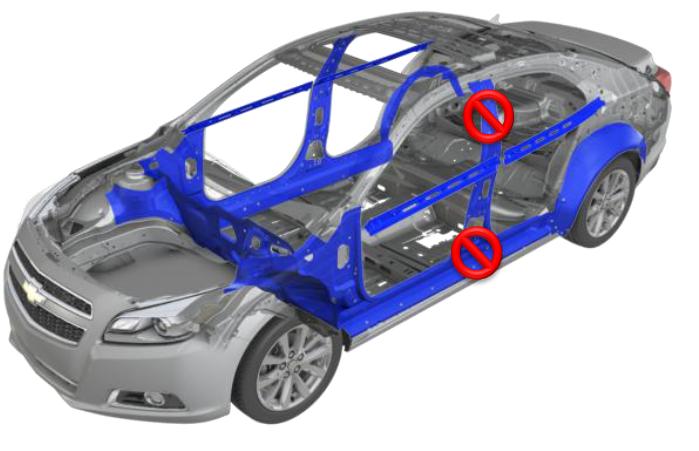

Do NOT cut the:

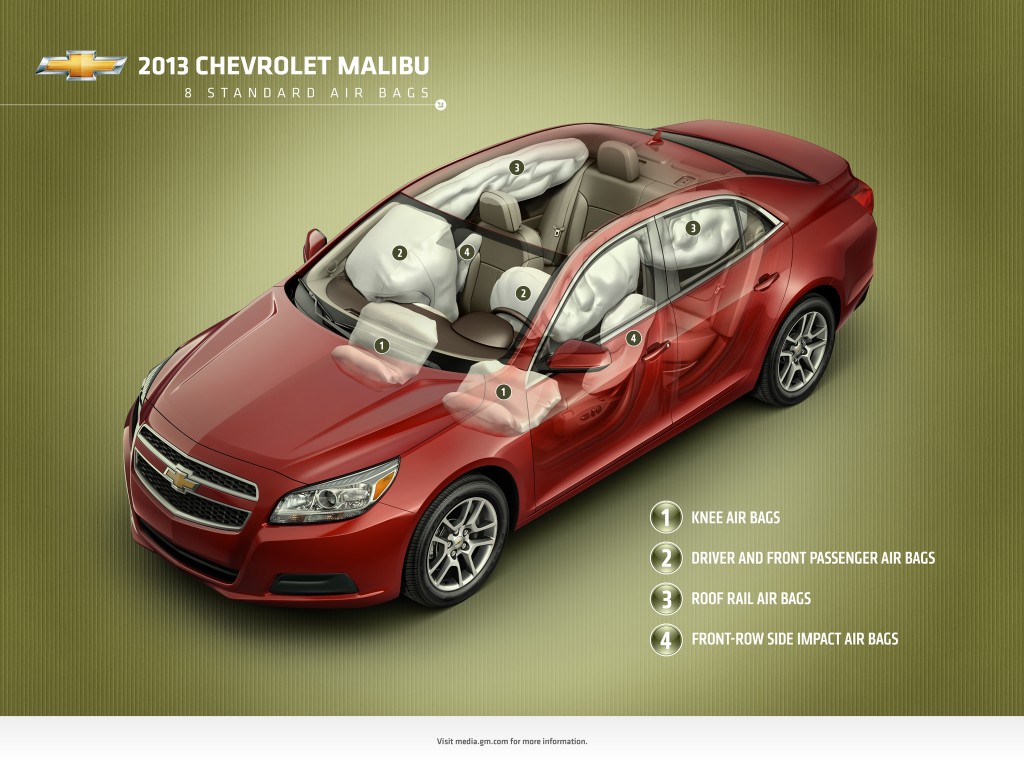

  • Roof rails near the center pillar; contains side curtain airbag inflators
  • Front seat back on the outboard edge; contains side airbags
  • Center pillar near the rocker; contains the seat belt retractor pretensioner and side impact sensor

2013 Malibu Eco Chevrolet eAssisst Extrication Hybrid Battery HV Cable Body Structure

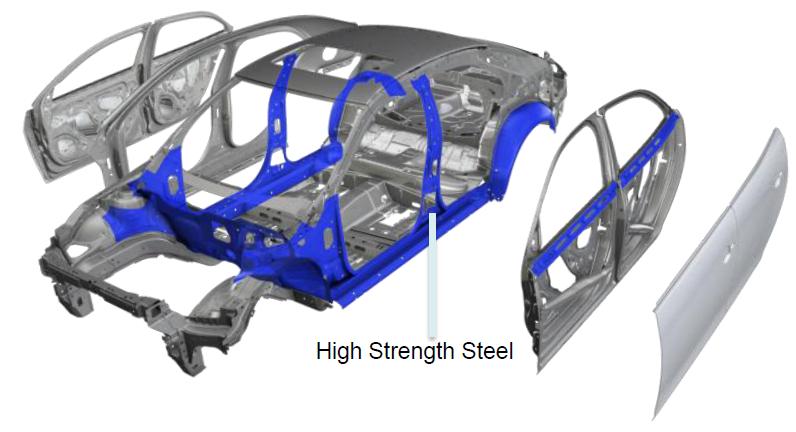

The Chevrolet Malibu Eco is designed to protect the occupants during a collision. The body structure contains high strength steel; this is highlighted in blue. The occupants are protected from front, rear, and side impacts by a structural cage created by the underlying vehicle structural design.  Additional crumple zones protect the occupant with front, side, and rear rails that are designed to crush in a crash.

2013 Malibu Eco Chevrolet eAssisst Extrication Hybrid Battery HV Cable Body Structure

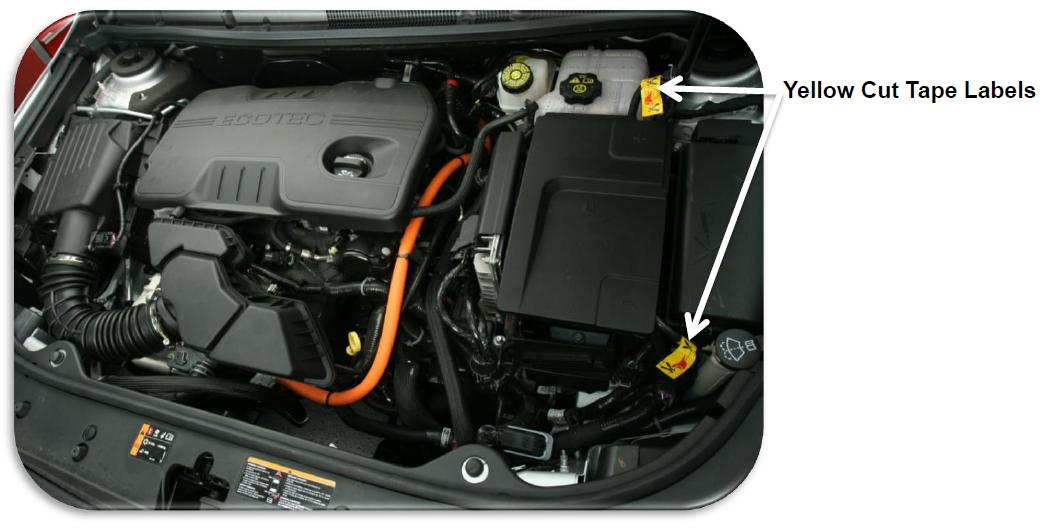

Cut through the low voltage cables on each side of the yellow labels to remove a section of the cable to ensure the cables cannot inadvertently reconnect.

Make sure you read thru the Emergency Response Guides below:
