2013 Ford Hybrid and Electric Vehicles HV Batteries and Disconnects

The 2013 Ford Towing Guide is available online and has some good information that we can use while we await the release of the 2013 Emergency Response Guide (ERG).

2013-ford-focus-electric-badgeFocus Electric Battery and High Voltage Service Disconnect Locations

  1. High Voltage Batteries
  2. High Voltage Service Disconnects

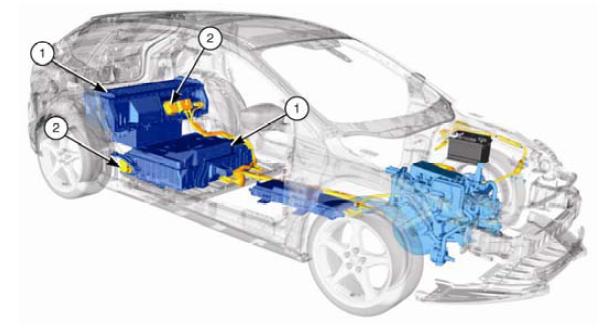

Focus Electric Battery and High Voltage Service Disconnect Locations

Ford-Fusion-Hybrid-2013 BadgeFusion Hybrid Battery and High Voltage Service Disconnect Locations

  1. High Voltage Service Disconnect
  2. High Voltage Battery

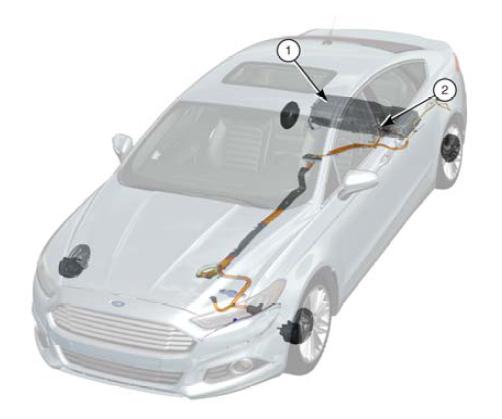

Fusion Hybrid Battery and High Voltage Service Disconnect Locations

2013-ford-c-max-energi-door-badgeC-Max Hybrid Battery and High Voltage Service Disconnect Locations

  1. High Voltage Battery
  2. High Voltage Service Disconnect

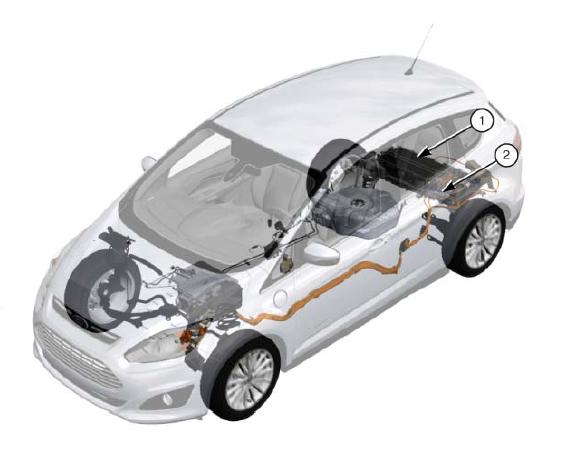

C-Max Hybrid Battery and High Voltage Service Disconnect Locations
