2013 Chevrolet Express Van Body Structure and Stored Gas Inflators

Quick look at the 2013 Chevrolet Express Van body structure and airbags.  Note the different stored gas inflators in the Moditech Crash Recovery System (CRS) below.  Different locations for the stored gas inflators based on on if the van has standard outward swinging doors or a sliding door.  Even the standard panel van version has different locations.  3 models, 3 different locations!

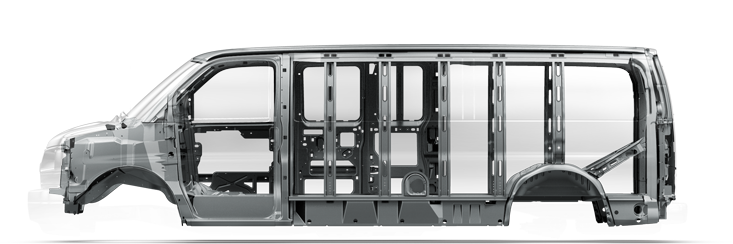

 2014 Chevrolet Express Van body Structure

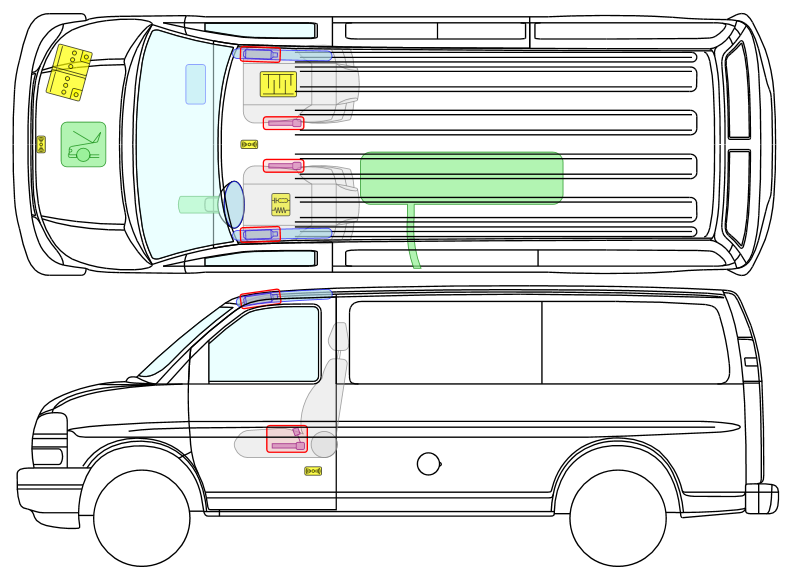

2013 Chevrolet Express Standard Panel Van

2013 Chevrolet Express Standard Panel Van

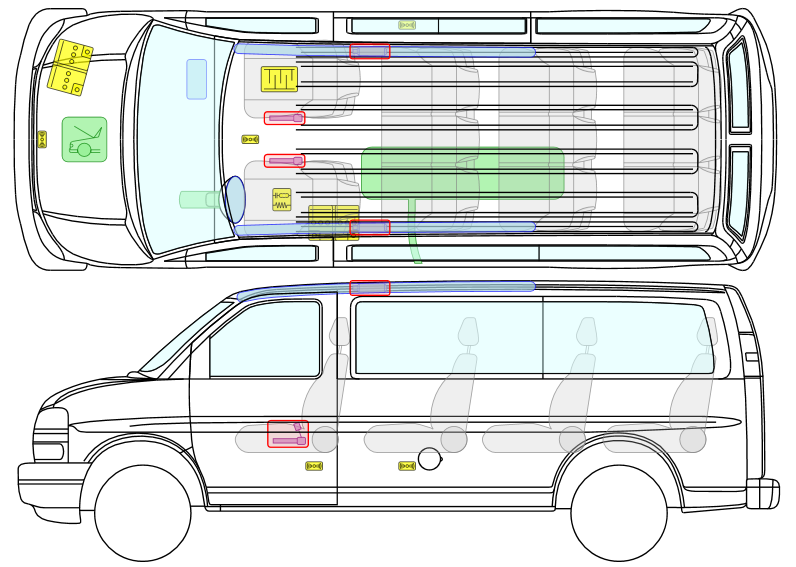

2013 Chevrolet Express Standard Side Door

2013 Chevrolet Express Standard Side Door

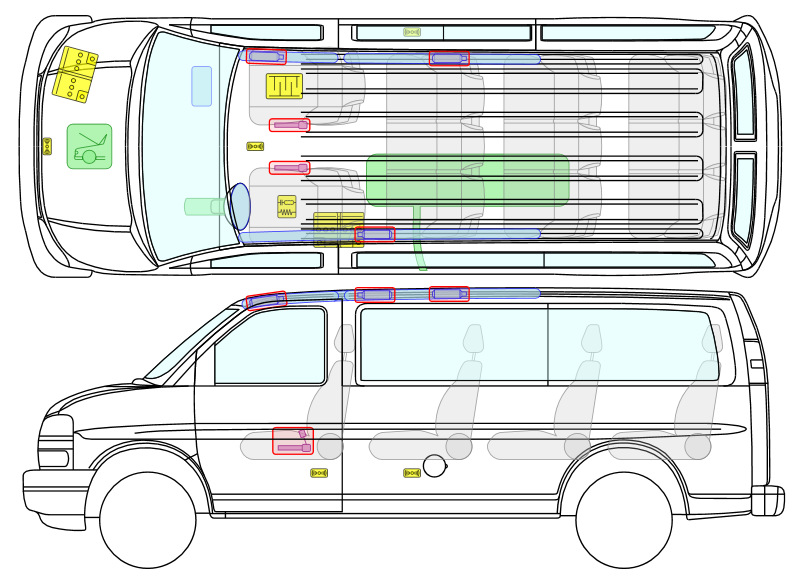

2013 Chevrolet Express Sliding Door

2013 Chevrolet Express Sliding Door
