2017 Cadillac XT5 Body Structure

2017 Cadillac XT5 Body Structure

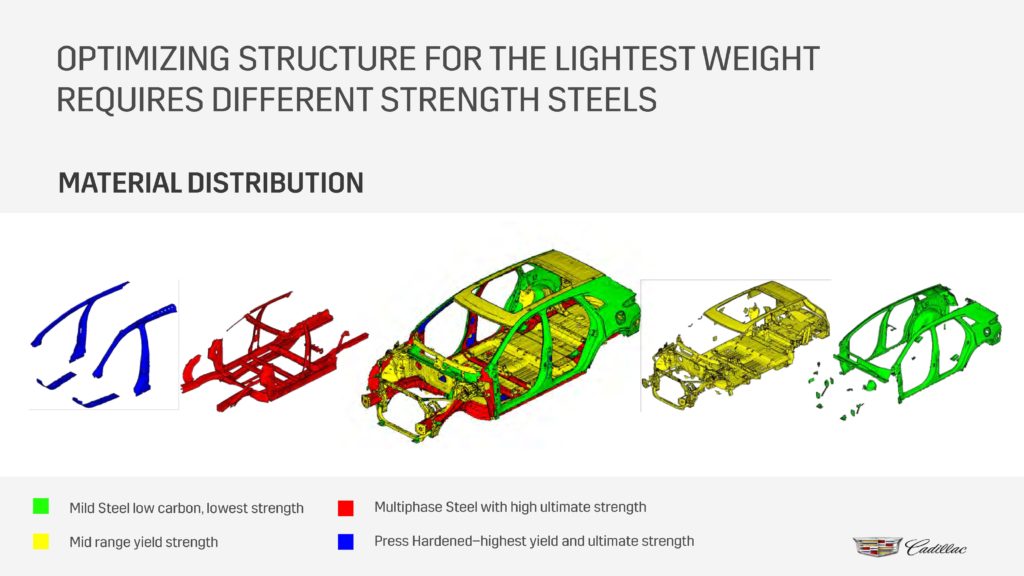

The 2017 Cadillac XT5 aced the Insurance Institute for Highway Safety (IIHS) crashed testing by earning the Top Safety Pick+ (TSP+) when equipped with optional front crash prevention. The TSP+ rating is the highest rating a vehicle can earn from the IIHS.  Additionally, the 2017 Cadillac XT5 has standard with seven airbags. The 2017 Cadillac XT5 is a mixed-metal body structure safety was a top priority during the XT5’s development.

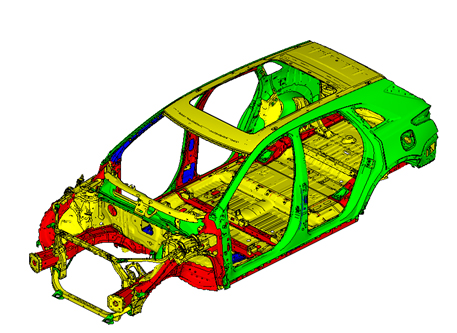

The 2017 Cadillac XT5 crossover has earned a 2016 Top Safety Pick+ rating from the IIHS. Shown here is the mixed-metal body structure of the XT5; engineering safety into the vehicle was a top priority during the XT5’s development.

Dash Lift/Roll Challenges

The small overlap IIHS crash test is forcing automakers to beef up the front wheel well and hinge pillar.  The metal in red is Ultra high strength steel that can slow down traditional dash roll/lift techniques.




Simulation vs Crash Testing

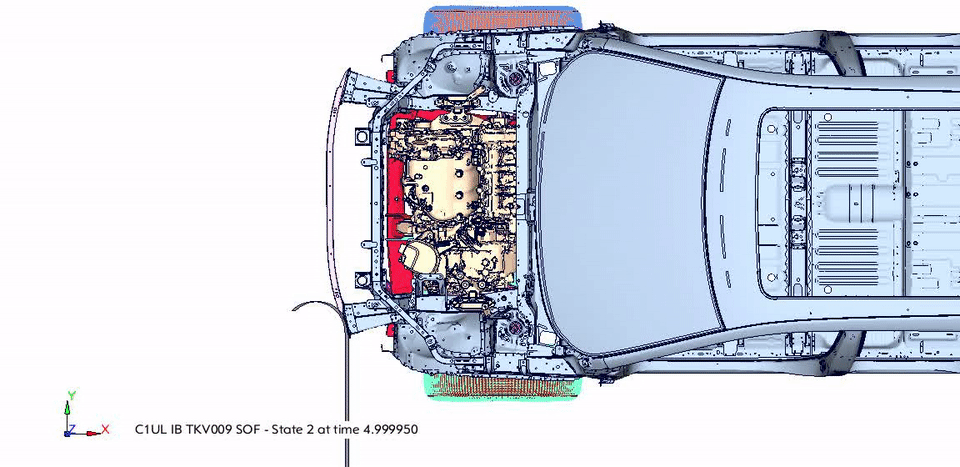

Take a look at the animated image and the video of the 2017 Cadillac XT5 small overlap IIHS crash test. In the IIHS video, notice how the driver door is largely undamaged.
2017 Cadillac XT5-Body-Structure
