2012 Honda Civic Hybrid Extrication Hazards

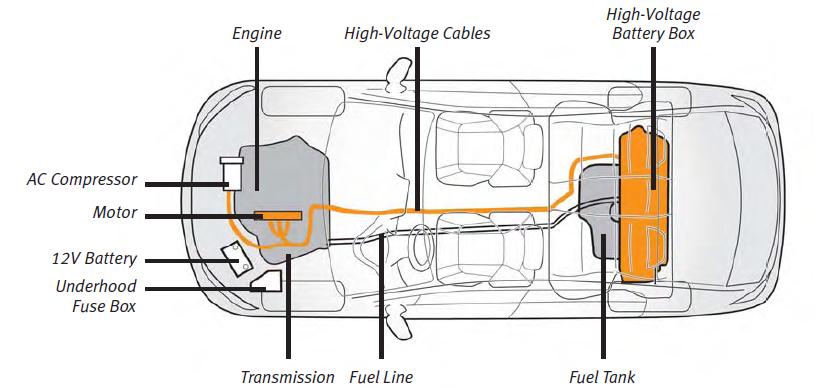

You are dispatched to an MVA with a Honda Civic and another vehicle.  You ATF that the appearance of the 2012 Civic Hybrid is essentially the same as conventional Civic sedans.  The only difference is the word “Hybrid” appears on the right rear of the vehicle on the Hybrid model.

2012 Honda Civic Hybrid Extrication Hazards

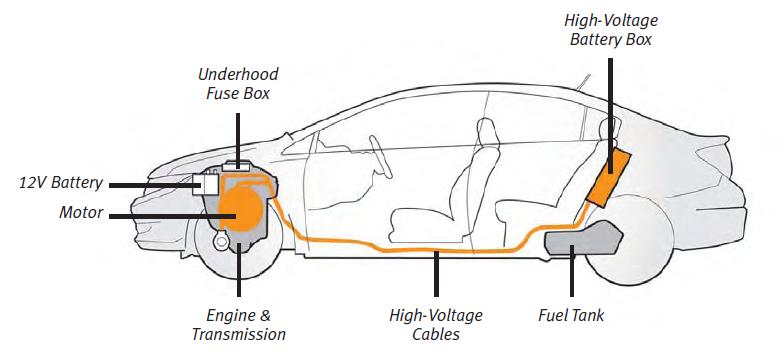

2012_Honda_Civic_Hybrid_Extrication_Hazards_battery

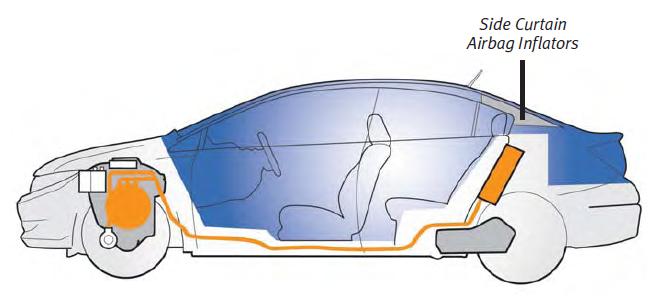

The Cut Zones are highlighted in blue below.  Make sure you take note of the Side Curtain Airbag Inflators in the C-Pillar.

2012_Honda_Civic_Hybrid_Extrication_Hazards_Airbags_Cut_Zones

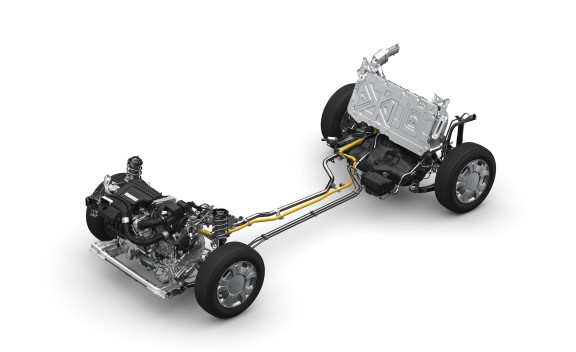

2012 Honda Civic hybrid technical illustration for engine, hybrid IMA layout with Intelligent Power Unit (IPU) and chassis.
