2013 Scion iQ EV Body Structure and Airbags

The Emergency Response Guide (ERG) for the 2013 Scion iQ EV covers the body structure, high voltage battery, airbags, inflator locations, and ideal cribbing locations.  The images below are a quick look at the highlights from the ERG.   The orange colored power cables that carry high voltage run the center of the undercarriage.

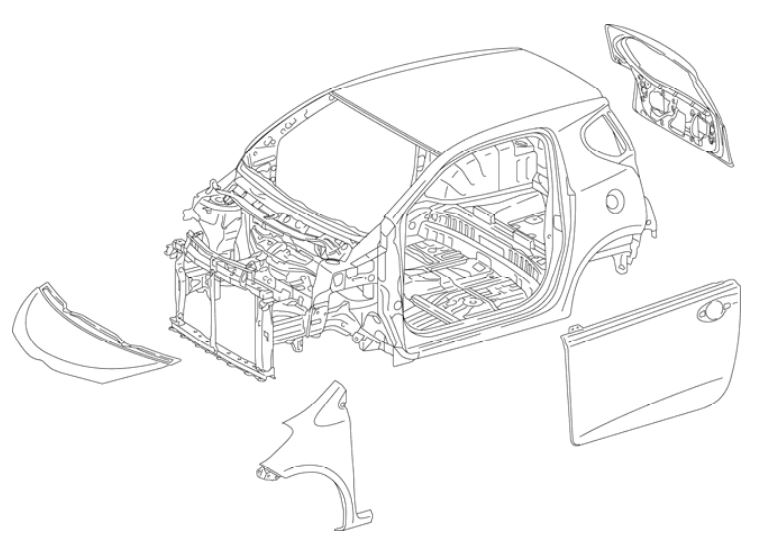

2013 Toyota IQ Body Structure ExtricationThe iQ EV is equipped with a tire pressure warning system that by design prevents pulling the metal valve stem with integral transmitter from the wheel. Snapping or cutting the valve stem with pliers or removing the valve cap and valve core will release the air in the tire.

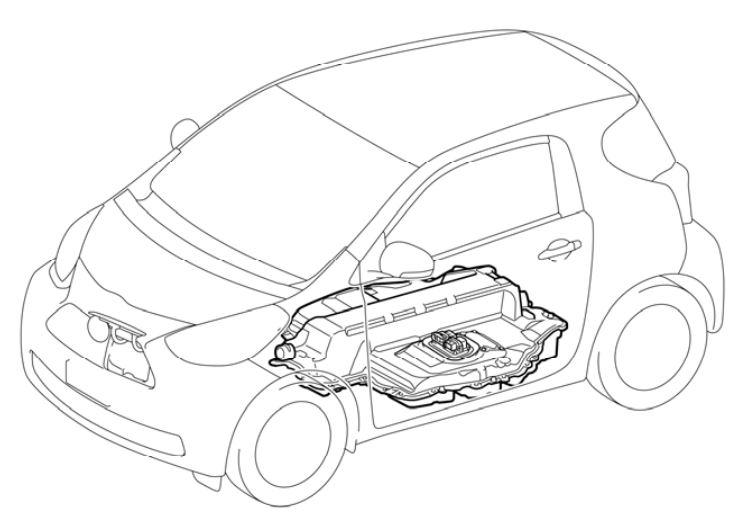

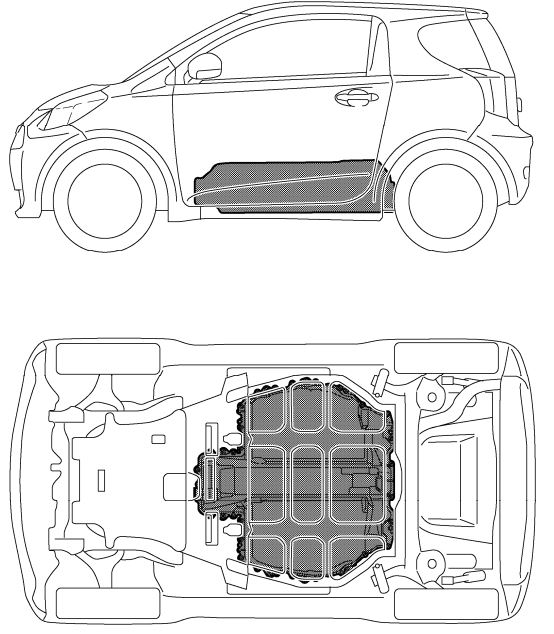

2013 Scion iQ EV HV Battery Extrication Rescue


2013 Scion iQ EV HV Battery Extrication Rescue

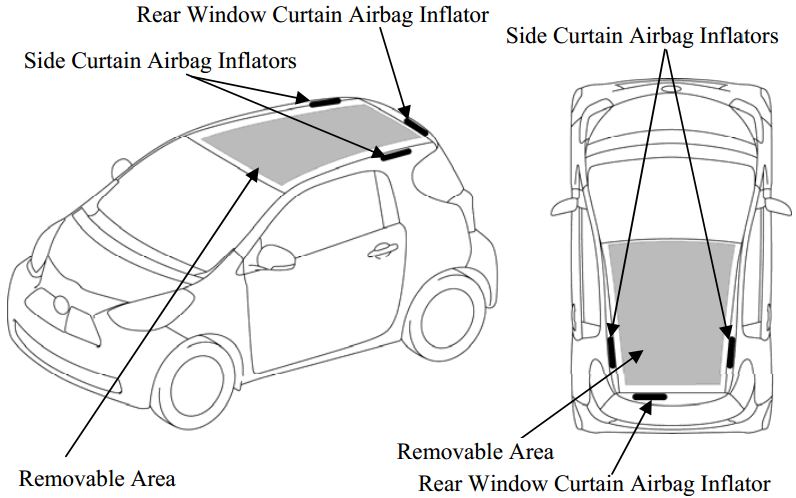

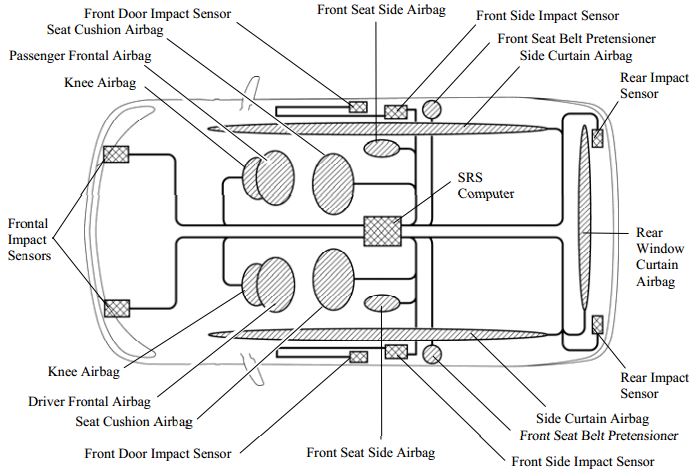

2013 Scion iQ EV Airbags Extrication Safety Rescue2013 Scion iQ EV Airbags Extrication Safety Rescue
