2016 Honda Pilot Body Structure

The 2016 Honda Pilot features ultra-high-strength steel in its construction to add even more strength and protection to the front of the vehicle.

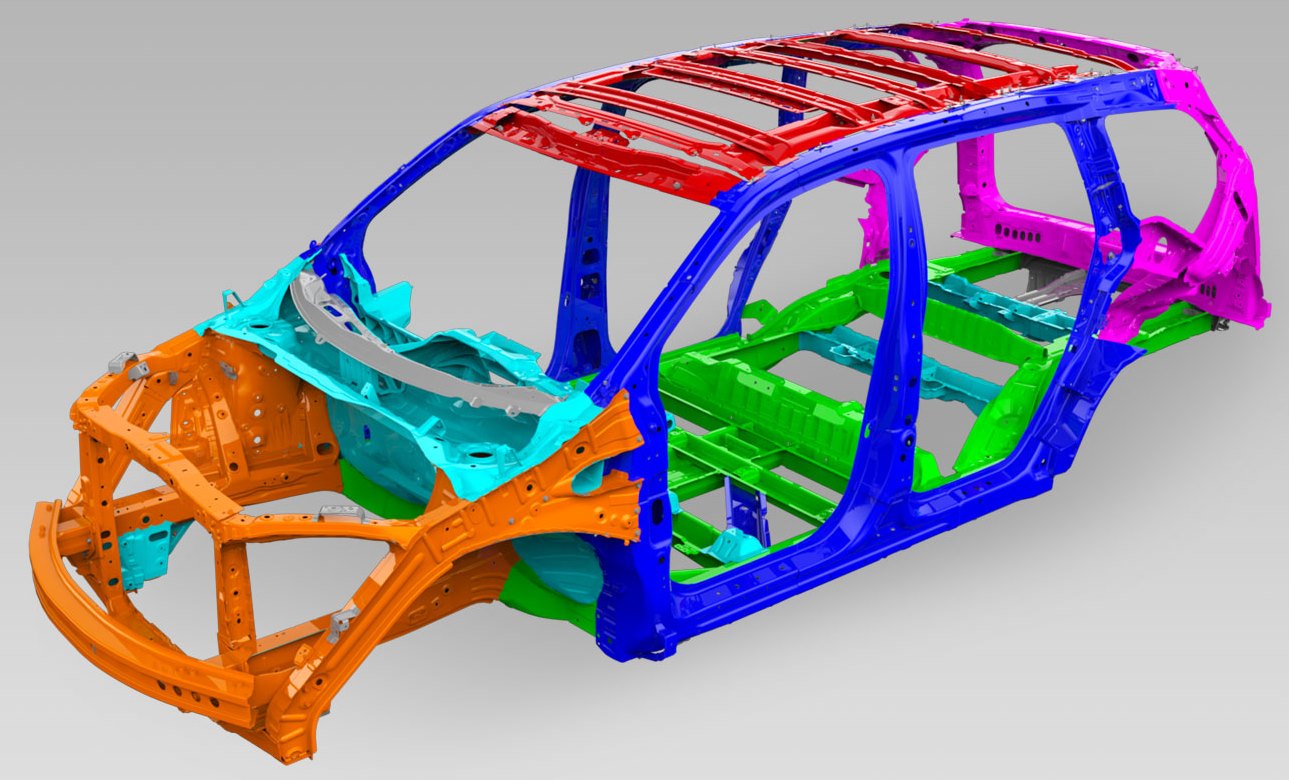

2016-Honda-Pilot-body-structure
The Pilot’s body only contains 34.5 percent mild steel of 270 megapascals, and more than half of the full-size SUV is advanced-high-strength (590 MPa) or tougher steel around twice to five times as strong. That breaks down into 32.1 percent 590 MPa and 21.3 percent 980-1,500 MPa ultra-high-strength steel for the car that sold more than 100,000 last year. (Honda didn’t even bother with the 780 MPa “low” end of the ultra-high-strength steel range.)

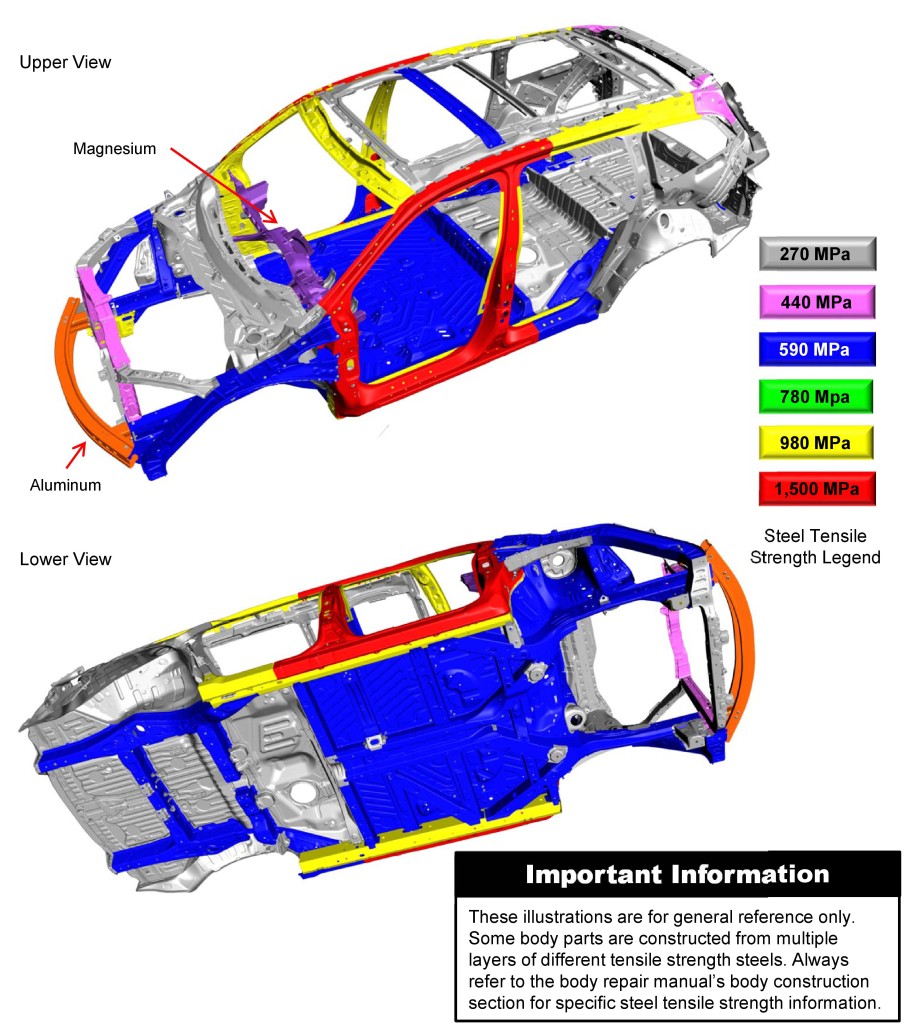

2016 Honda Pilot extrication

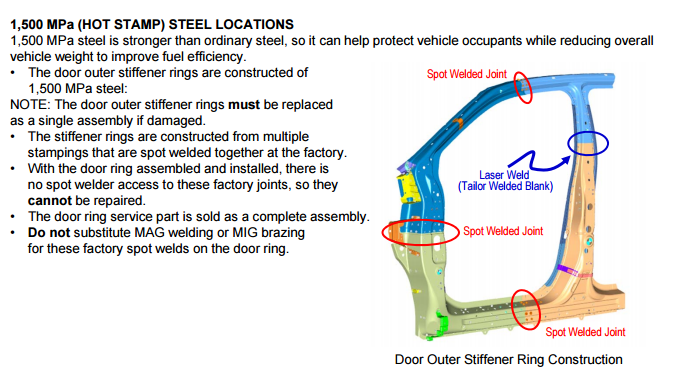

tailor-welded-blank-b-pillar

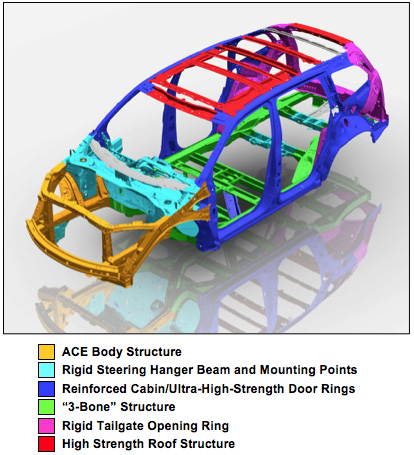

2016-Honda-Pilot-Body-Structure-ACE

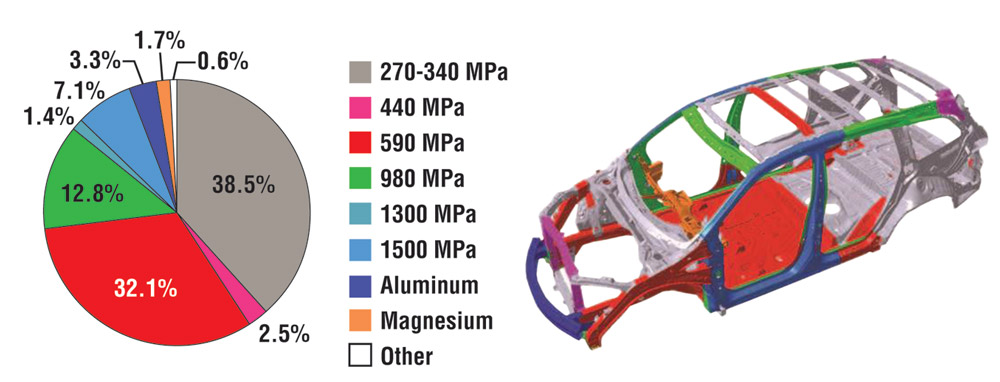

2016-Honda-body-structure
