Body Structure

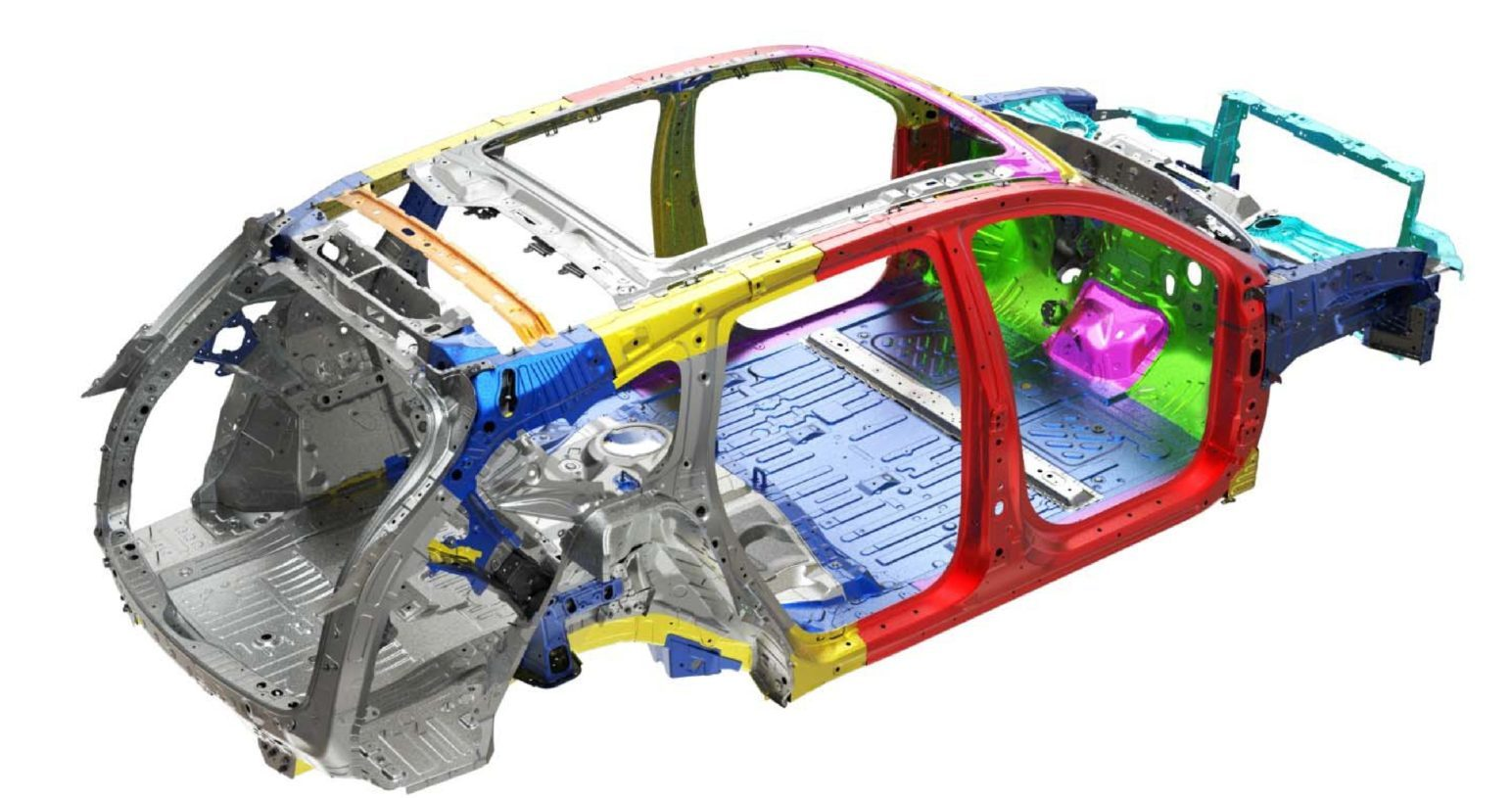

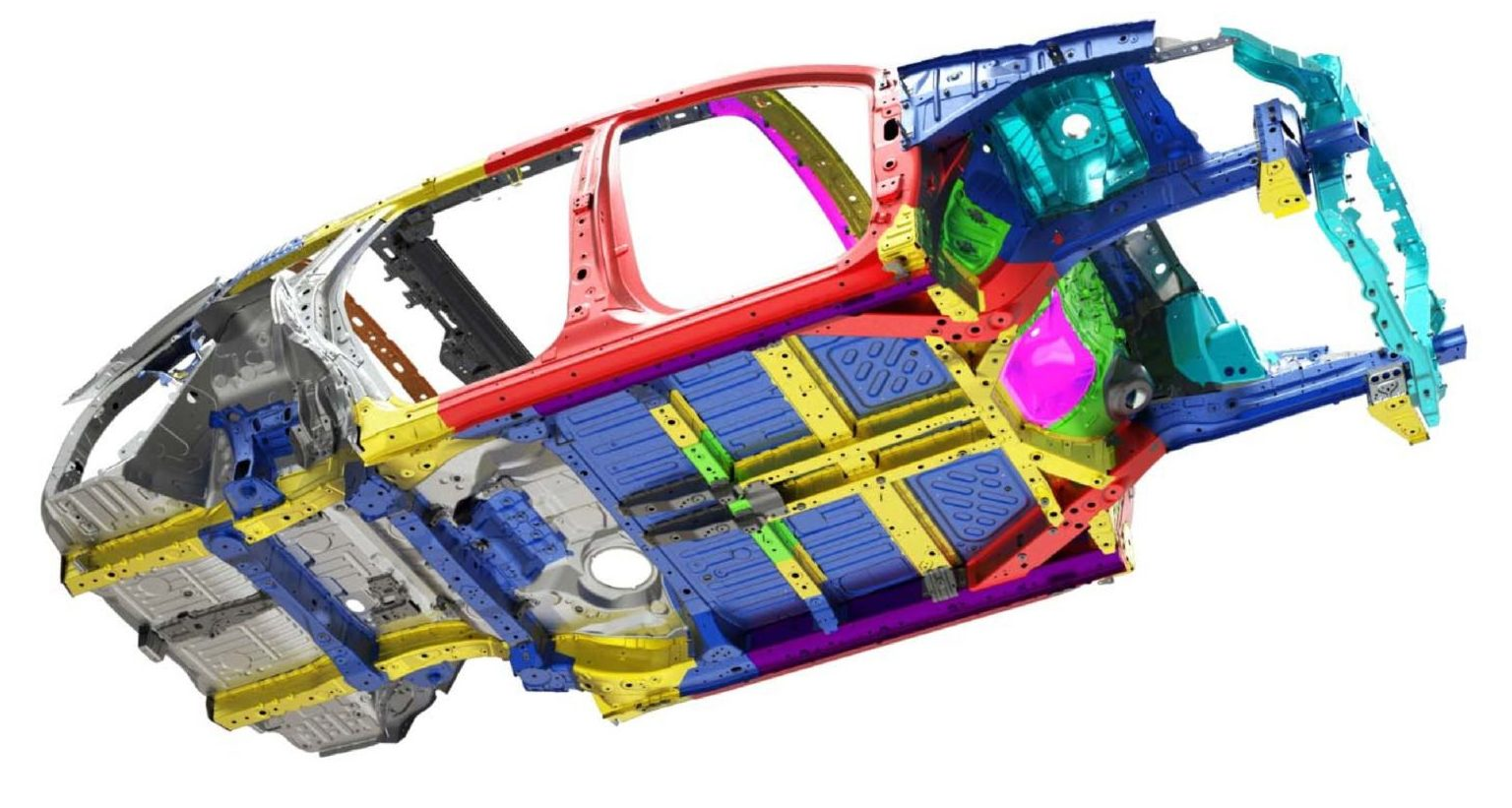

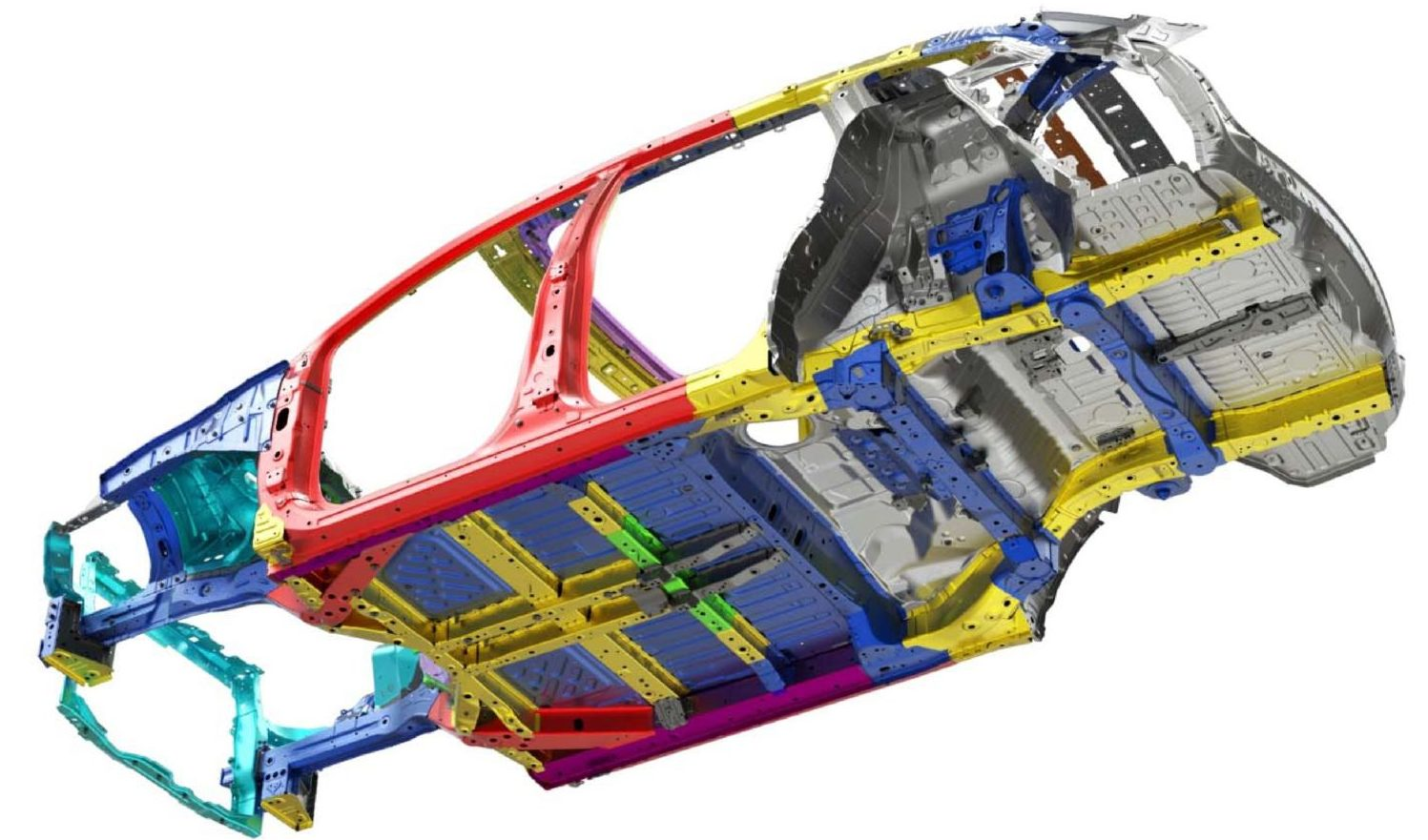

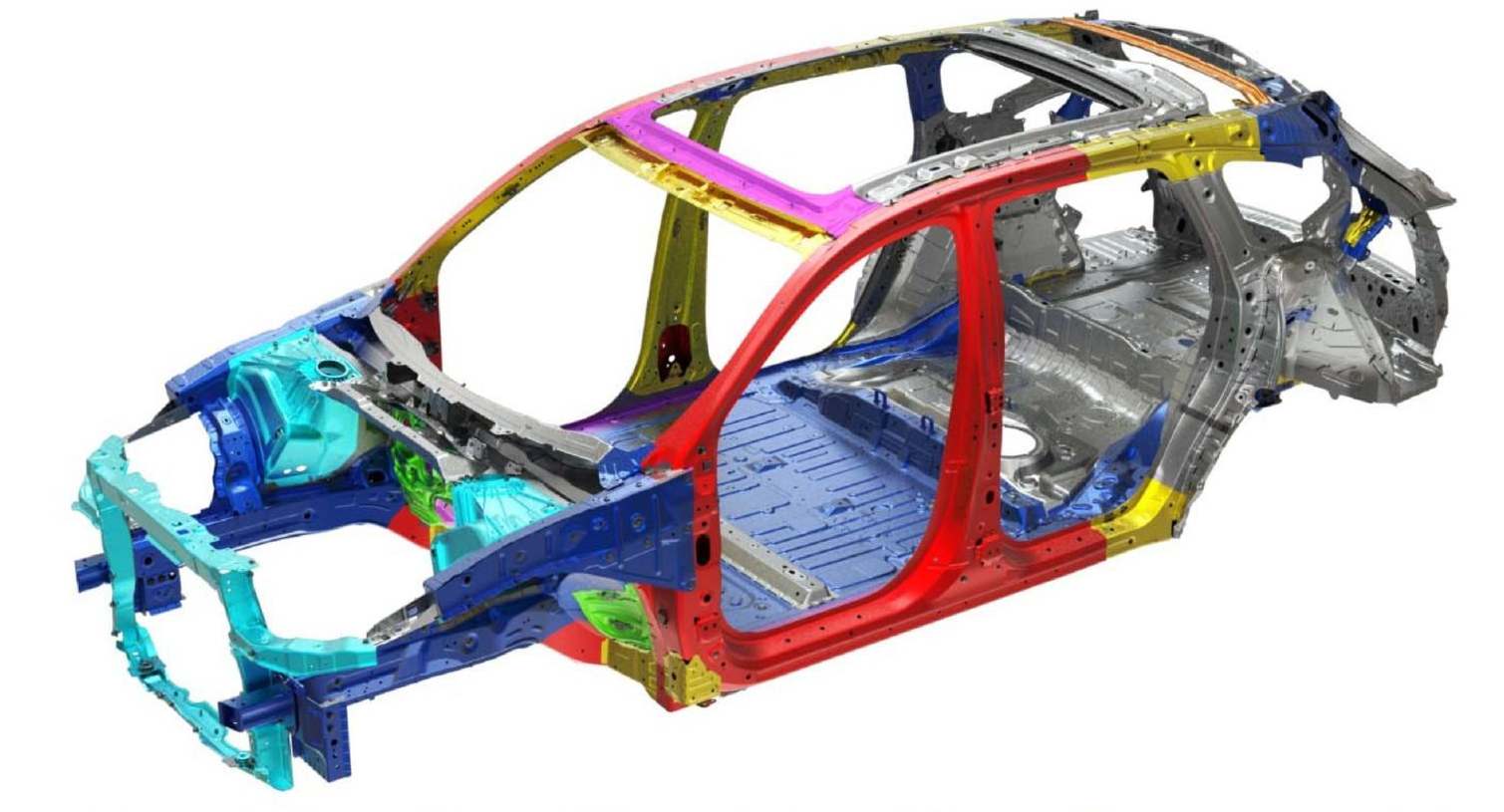

The 2022 MDX body structure is made with a significant concentration of higher-strength steels. The 1,500-megapascal “door rings,” are large single-piece structures encompassing the A- and B-pillars, hinge pillar, and front halves of the roof and frame rails.
Advanced High Strength Steel

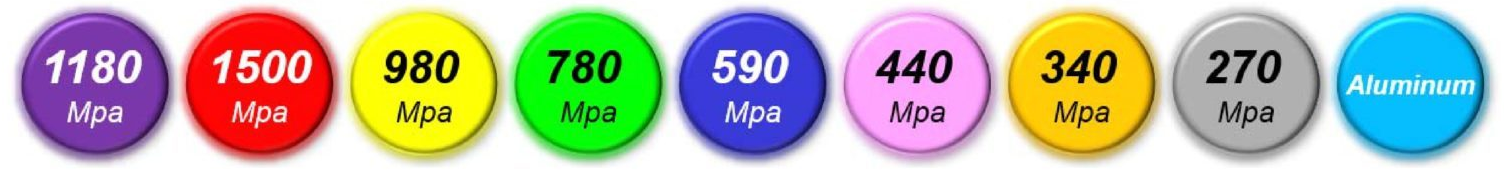

To aid safety performance and long-term durability, the 2022 MDX uses three different grades of press-hardened and high-strength steel (HSS) in 60.9 percent of its body structure by weight, up from 54 percent in the outgoing MDX. This high-grade, high-tensile strength steel is applied to improve both dynamic and collision safety performance while mitigating weight. Altogether, 69.7 percent of the MDX body is composed of press-hardened steel, high-strength steel or aluminum — more than in any previous generation of MDX.
| Body Material Composition Comparison (%) | ||
|
|
Previous MDX |
2022 MDX |
| Press-hardened steel |
7.1 |
12.0 |
| Advanced high-strength steel |
14.3 |
24.2 |
| High-strength steel |
38.8 |
24.8 |
| Mild steel |
36.7 |
30.2 |
| Aluminum |
3.1 |
8.8 |
|
2022 MDX Body Materials |
|
| Press-hardened steel | Front door ring openings, inner A-pillars and outer B-pillars |
| Advanced high-strength steel | Lower dash, windshield header, inner B-pillars and floor sills, rear outer roof spars, rear floor spars |
| High-strength steel | Front clip, front and center floors, roof panels, front and rear roof structural stiffeners, rear door openings (partial), doors |
| Mild steel | Cowl, C- and D-pillars, outer A-pillar, rear fenders, rear roof crossmembers, rear panoramic moonroof frame, rear fender wells, rear suspension mounts, cargo area floor, ancillary supports |
| Aluminum | Hood, front fenders, front and rear bumper beams, front shock tower mounts |
