2010 Chrysler Body Structures

Here are a few pictures of the 2010 Chrysler Body Structures:

When the redesigned Chrysler Sebring hit the road in 2007, it had one of the highest combined percentages of high-strength and ultra-high-strength, hot-stamped steel among production-volume vehicles.  How much UHSS and Dual Phase?  Hot-stamped steel is used in the A-pillars, B-pillars and roof rail reinforcements that shed 30 lbs of upper body weight by 30 lbs.  Dual-phase and high-strength steels are located in the sill with as many as four layers of metal that provide impact energy management.  The Sebring has large sills which stiffen the body structure.

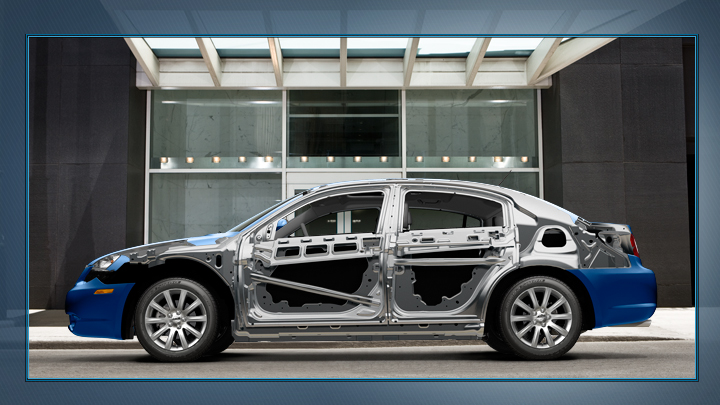

2010_Chrysler_Sebring_Body_structure

2010 Chrysler Sebring

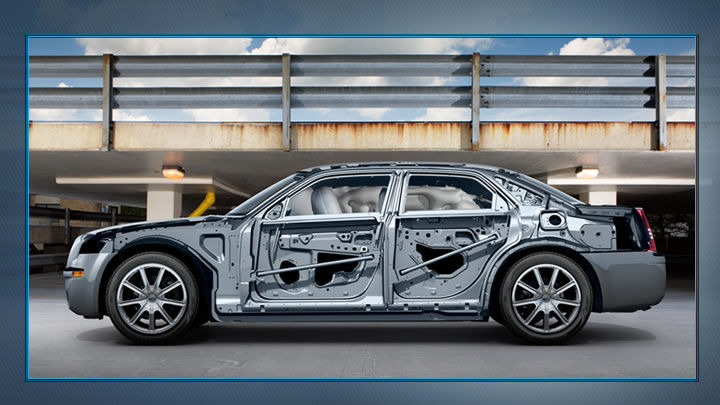

2010_Chrysler_300_Body_structure

2010 Chrysler 300

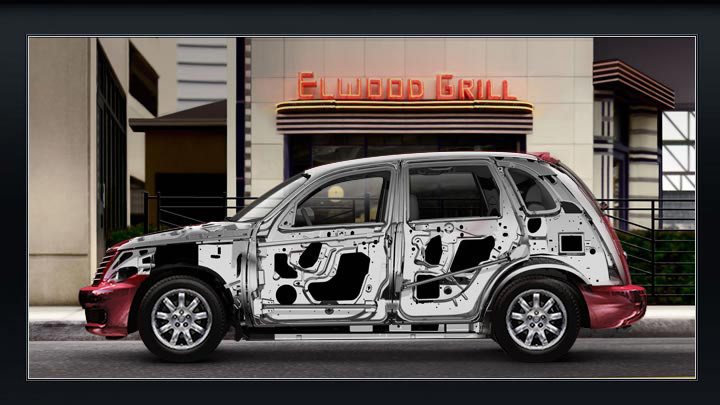

2010_Chrysler_PT_Cruiser_Body_structure

2010 Chrysler PT Cruiser

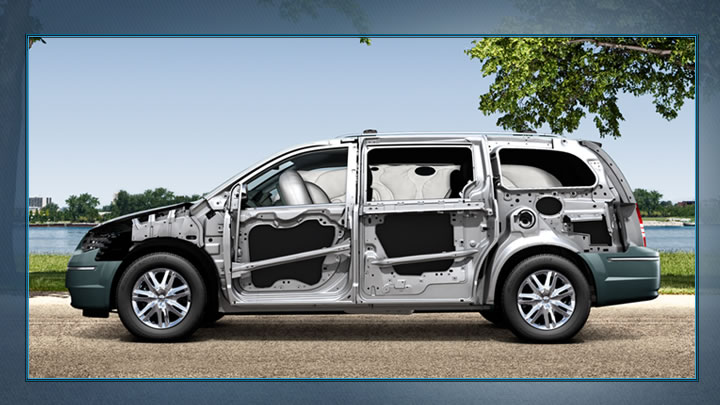

2010_Chrysler_Town_Country_Body_structure

2010 Chrysler Town and Country
