Exploded Mercedes Benzs Body Structure

If you clicked the title of this post and were expecting pictures of Mercedes Benz cars blown to pieces than accept my sincere apologizes.   An exploded view is a diagram, picture or technical drawing of an object, that shows the relationship or order of assembly of various parts. Below are several “exploded” pictures of with the sheet metal removed.

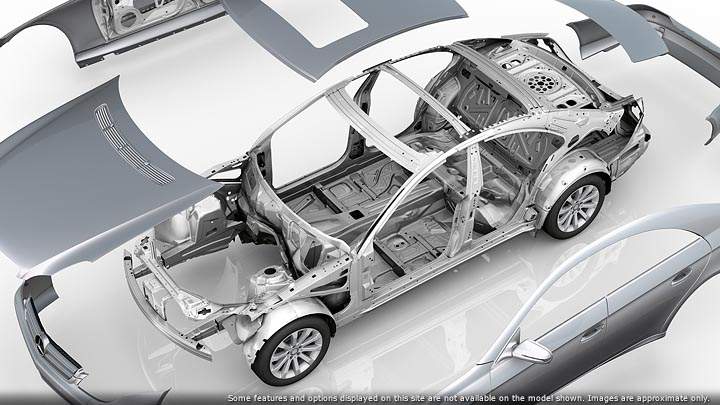

2009 Mercedes-Benz CLS550

A range of precision safety elements work together to protect you and your passengers in the event of a collision. While high-strength/low-alloy (HSLA) steel in important areas of the vehicle forms an exceptionally rigid structure, advanced front and rear crumple zones deform progressively to help absorb the energy of an impact. An innovative front bulkhead also helps channel some of the forces of a frontal impact under, over, and around the cabin.

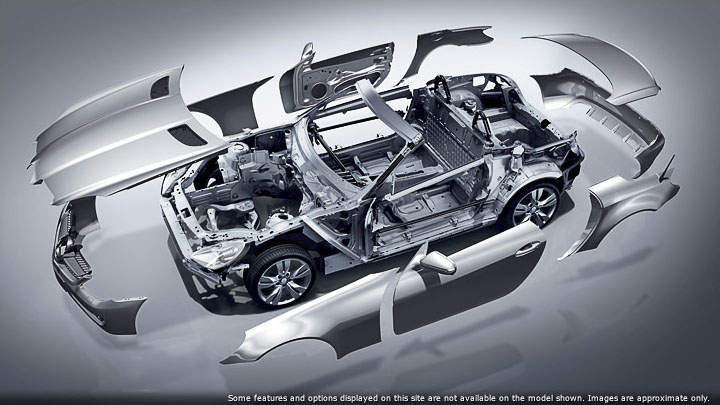

2009 Mercedes-Benz SLK350 Roadster

A range of precision safety elements work together to protect you and your passengers in the event of a collision. While high-strength/low-alloy (HSLA) steel in important areas of the vehicle forms an exceptionally rigid structure, advanced front and rear crumple zones deform progressively to help absorb the energy of an impact. An innovative front bulkhead also helps channel some of the forces of a frontal impact under, over, and around the cabin.

2009 Mercedes-Benz SL550 Roadster

A range of precision safety elements work together to protect you and your passengers in the event of a collision. While High-Strength/Low-Alloy steel in important areas of the vehicle forms an exceptionally rigid barrier, advanced front and rear crumple zones deform progressively to help absorb the energy of an impact. A front bulkhead also helps channel some of the forces of a frontal impact under, over, and around the cabin.
