2013 Volkswagen Jetta Hybrid

First off, if you haven’t liked the Boron Extrication page on Facebook, please do!

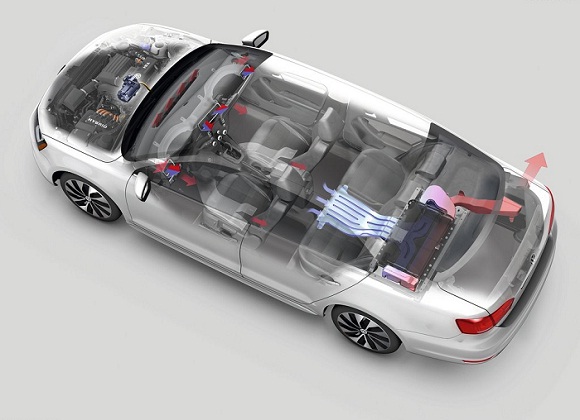

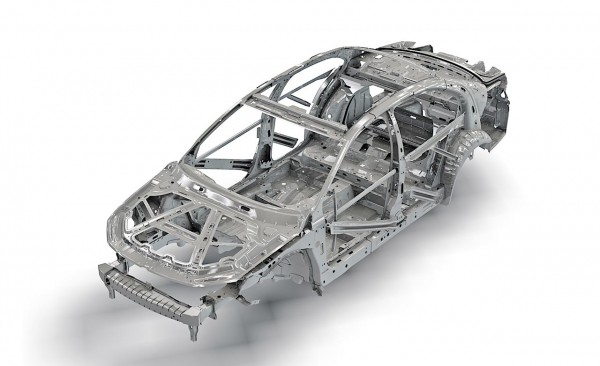

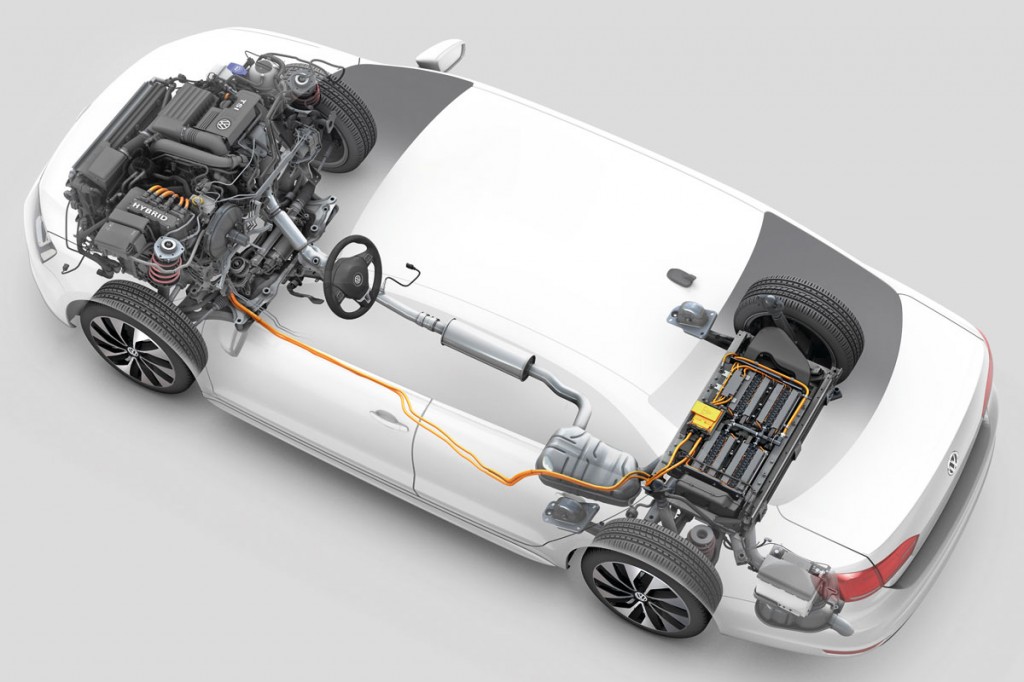

2013 Volkswagen Jetta Hybrid Body Structure Extrication BIWThe 2013 Volkswagen Jetta Hybrid is set to hit the US market during the second half of 2012.  The hybrid has a State-of-the-art battery: A lithium-ion battery supplies the energy to the electric motor. The compact 220-volt, 1.1 kWh battery is integrated behind the rear bench seat and weighs less than 80 lb. The battery consists of 60 individual cells with a combined energy capacity of 5 Ah. The frequency of the discharge and charge cycles in hybrid operation requires high- performance battery cooling, which is handled by a fan mounted directly on the device. The battery also has its own management system that performs safety, diagnostic, and monitoring functions as well as temperature management. The battery is disconnected when it‟s not in use or if the car is involved in a collision.

Standard safety equipment for all Jetta models includes Electronic Stability Control (ESC), anti- lock brakes (ABS), and six airbags (driver and front passenger airbags, front side thorax airbags and Side Curtain Protection® airbags front and rear).

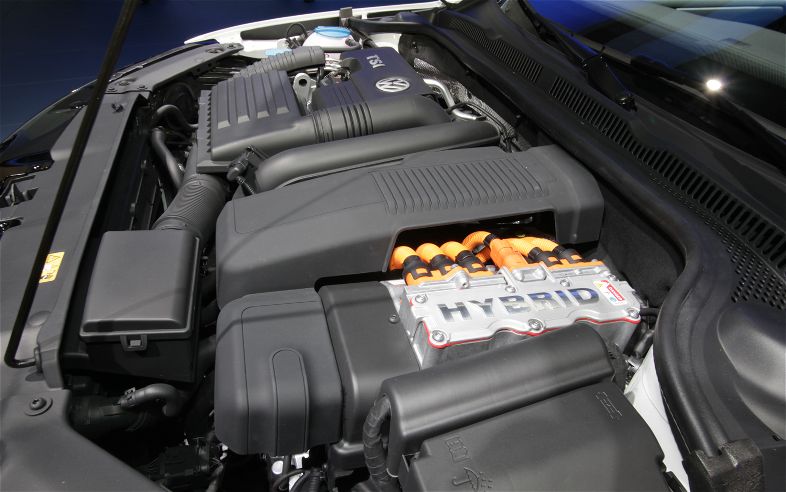

2013 Volkswagen Jetta Hybrid Battery

2013 Volkswagen Jetta Hybrid Battery
